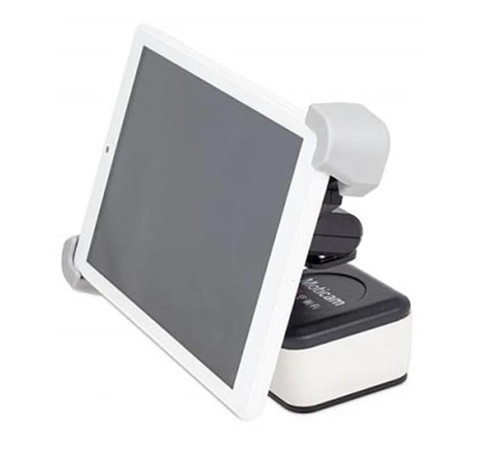

Moticam X5 Plus 4.0MP Microscope Camera with Built In WiFi - Purchase C-Mount Separately

Moticam X5 Plus 4.0MP Microscope Camera with Built In WiFi - Purchase C-Mount Separately

(No reviews yet) (No reviews yet)
5.00 LBS
Calculated at Checkout
$409.00 $368.10
(You save $40.90 )

This revolutionary digital camera makes capturing and sharing images easier than ever. The Moticam X5 Plus can connect to an established wireless network as a searchable device, or can be used as a standalone in situations where computer access is limited.

The Moticam X5 Plus can create its own WiFi signal and allows for image sharing on up to six connected devices at once.

Power the camera using the included USB cable from a variety of sources (PC, wall outlet, vehicle, etc)

Rechargeable battery allows for completely independent operation making this a very powerful teaching and recording tool for field trips or work in the field.

The Moticam X5 Plus can be mounted on a standard trinocular port (c-mount required) or to any 18mm or 20mm eyepiece with one of the two included adapters.

Users must download the complementary Moticonnect app from either Google Play or Apple store or install the viewing software (Moticam Images Plus 3.0) on the enclosed CD to view from a computer (PC and MAC and Linux versions included)

The Moticonnect app allows for live-viewing, taking snapshots, performing measurements and other robust editing features.

To share, users can simply email images to themselves or a collaborator, or choose from several supported file-sharing programs (like Dropbox)

4.0MP CMOS sensor

CMOS Sensor - 1/3"

Focusable Macro Lens and Macro tube included for viewing samples

12mm focusable lens

30mm and 38mm centerable eyepiece adapters

Power supply with adapters for many different countries

Operating system: Android (ICS and higher); iOS (OS5 and higher); Universal web browser (HTML 5)

Built in wired network

Schools and Universities looking to purchase multiple units should please contact us directly to discuss volume discounts that are available.

Imaging area:
Capture resolution:
4MP (2592x1520 pixels)
Live display mode through Wi-Fi:
1280x720, 1920x1080 pixels (Full HD)
Live display mode through Ethernet:
1280x720, 1920x1080 pixels (Full HD)
Pixel size:
Scan mode:
Data transfer:
Wi-Fi (2.4 & 5 GHz), Ethernet
Max. frames per second (fps):
1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
Exposure time:
0.03 msec to 0.03 sec
